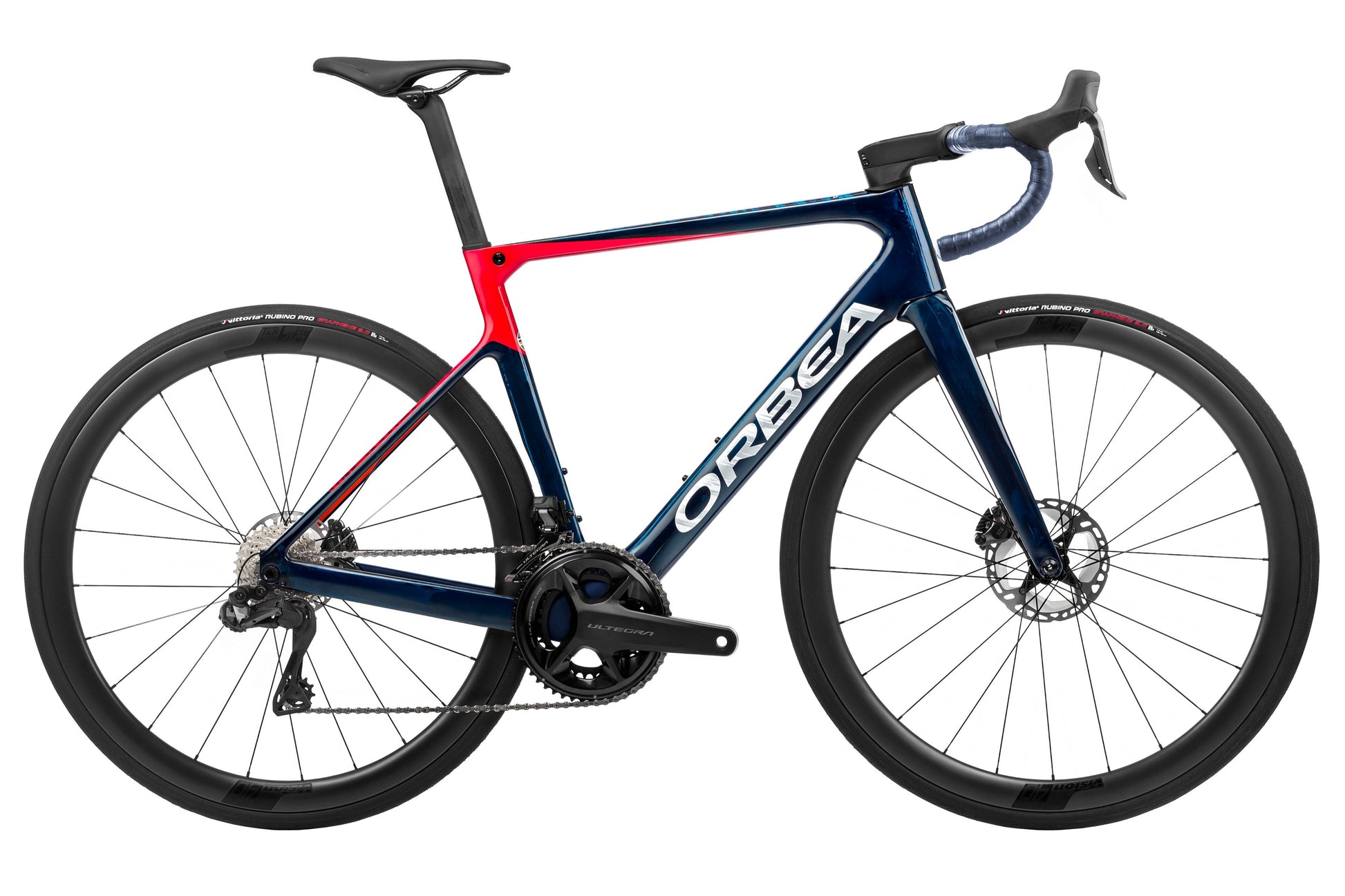

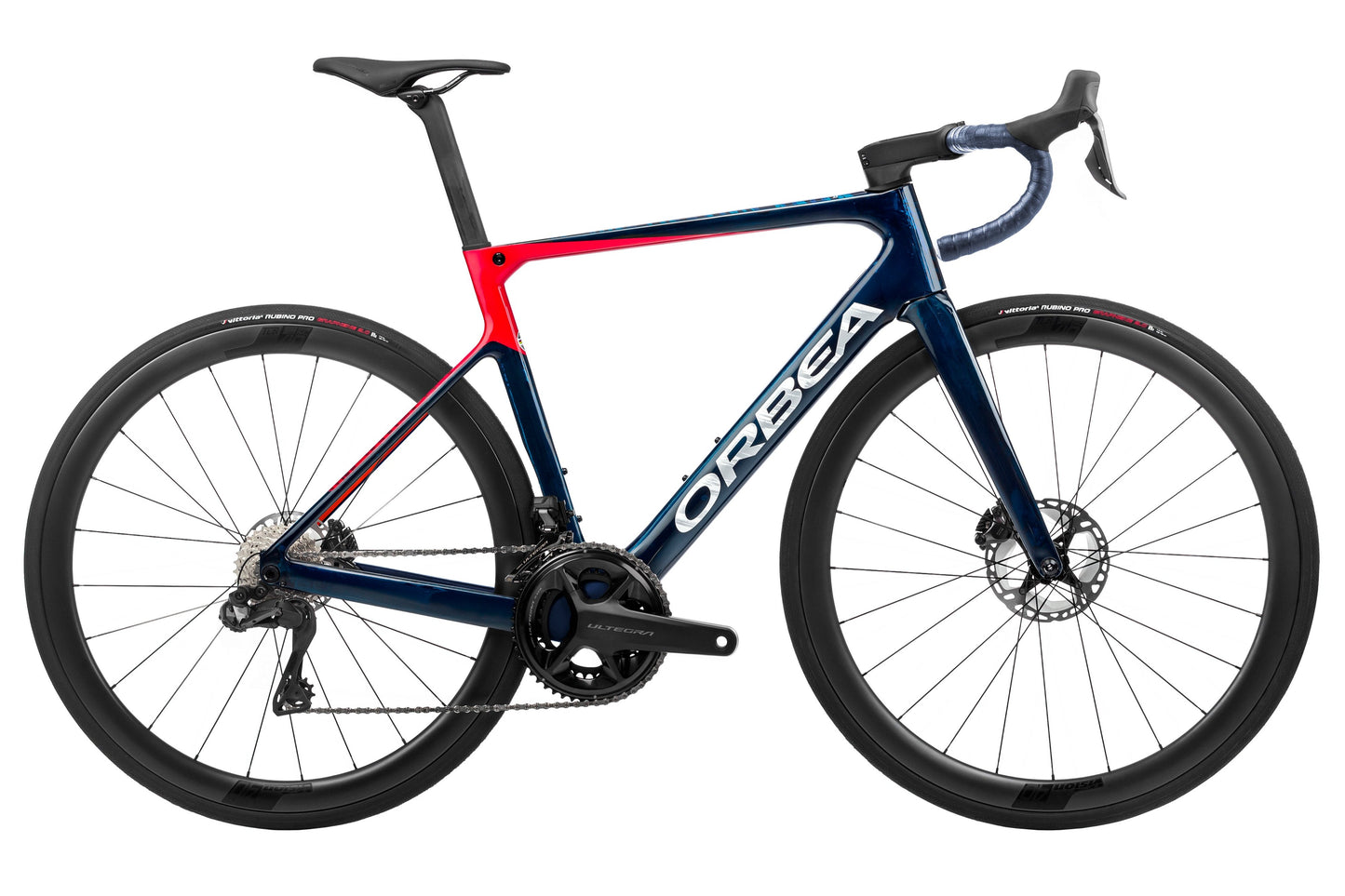

Orbea Orca M20i LTD PWR WNT Edition

The lightest and most capable racing bike
Performance, technology and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast and beautiful. Professional athletes, weekend warriors, Strava hunters and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.
Orca is the choice of stylish riders who demand the lightest bike with the best combination of technologies and flexible ergonomics

Orbea Monocoque Carbon
We use the most technologically advanced carbon construction available to make the most sophisticated frame possible – A complex and painstaking process with results you will appreciate in the saddle.
Orbea Road Racing Geometry
Orca Racing Geometry is born from almost 100 years of designing road racing bikes and is the perfect balance of responsiveness and stability. The position is aggressive to maximize body aerodynamics and efficiency. Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to put more power to the road with every pedal stroke, and more power means more speed.
Adaptable Ergonomics
How can ergonomics help you ride further? Unlike a racing position that is focused on aerodynamics, an endurance position results in a bike that is easier to ride and increases stamina. A shorter cockpit and higher handlebar maximize rider comfort – and more comfort means longer and faster rides.

Frame: Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing, EC/DC compatible, OMX specific seat tube.
Fork: Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Headset: Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing
Stem: OC Road Performance RP10 Stem, -8º
Handlebars: OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole
Brakes: Shimano R8170 Hydraulic Disc
Front Derailleur: Shimano Ultegra Di2 R8150
Rear Derailleur: Shimano Ultegra Di2 R8150
Shifters: Shimano ST-8170
Cassette: Shimano Ultegra R8100 11-30t 12-Speed
Chain: Shimano M8100
Crankset: Shimano Ultegra R8100 34x50t + 4iiii LH Power Meter
Wheels: Vision 40 SC Disc Carbon TLR CL
Rear Hub: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Front Hub: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Tyres: Vittoria Rubino Pro IV G2.0 700x25c
Seatpost: Orbea Orca OMX, SB0/25, w/Micro tilt adjustment
Saddle: Prologo Scratch-M5 Pas T2.0 size 140mm
Handlebar Plugs: Lyzard DSP 2.5mm
Wheel Size: 700c
Gearing: 2x12
Tyre Clearance: 32C
